CALICE-UK ECAL Prototype Readout Electronics

• Project overview
  • Project specification (ps, pdf)
  • Schedule: overall and prototype tests (ppt), VFE tests (pdf)
  • RAL ID website, containing links to the Quality Management System information
• Reviews
  • Conceptual Design Review (CDR), 11/10/02
  • Previous Internal Design Reviews (IDR) are linked from this website
  • Prototype Internal Design Review 7 (IDR7) website
• External interfaces and requirements
  • ECAL: VFE-PCB (ps, pdf), connector schematic: (ps), application notes (FLC_PHY2: doc, FLC_PHY3: doc, PCB V2: interface doc, test assembly doc, bug report doc), VFE PCB V2 schematics (ps; all, pages 1 2 3 4 5 6 7 8 9 10), photos (dir)
  • AHCAL: HAB manual V4 (pdf), slow controls interface (pdf)
  • DHCALE: HaRDROC home page and configuration data list (txt), datasheet (pdf), DHCAL1 board SCSI interface (xls)
  • Trigger inputs (doc, pdf)
  • Data Acquisition (ps, pdf)

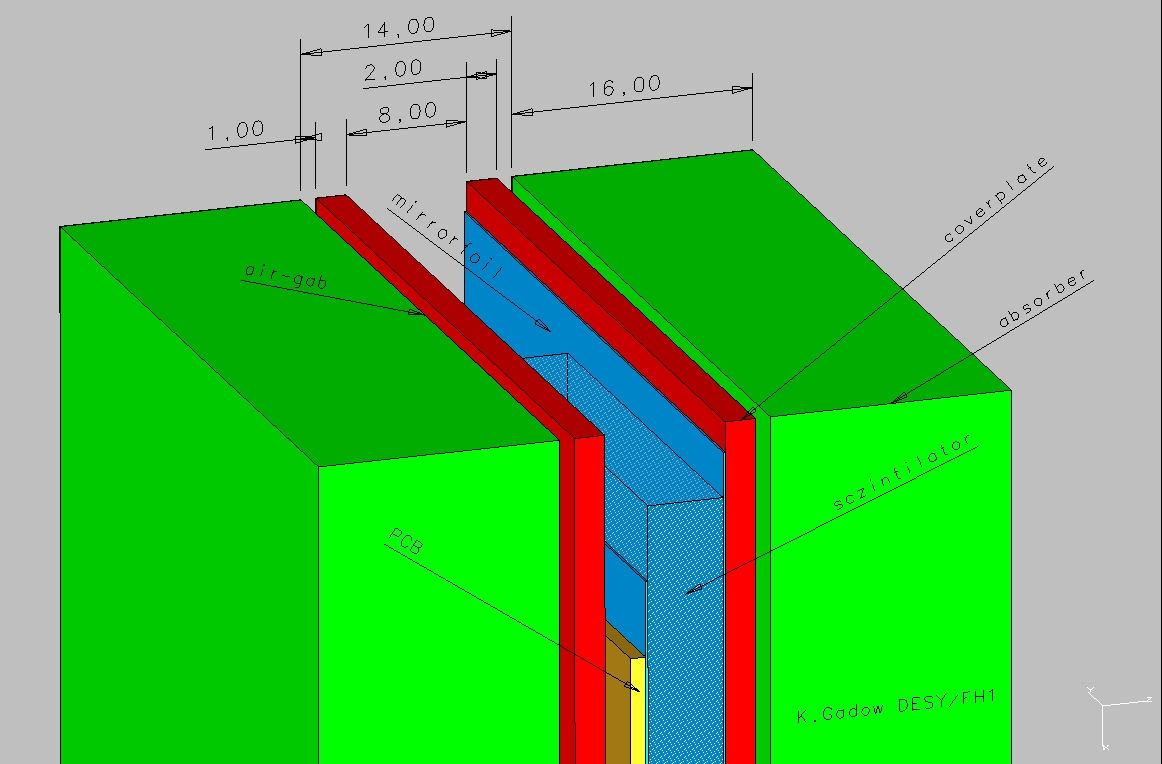

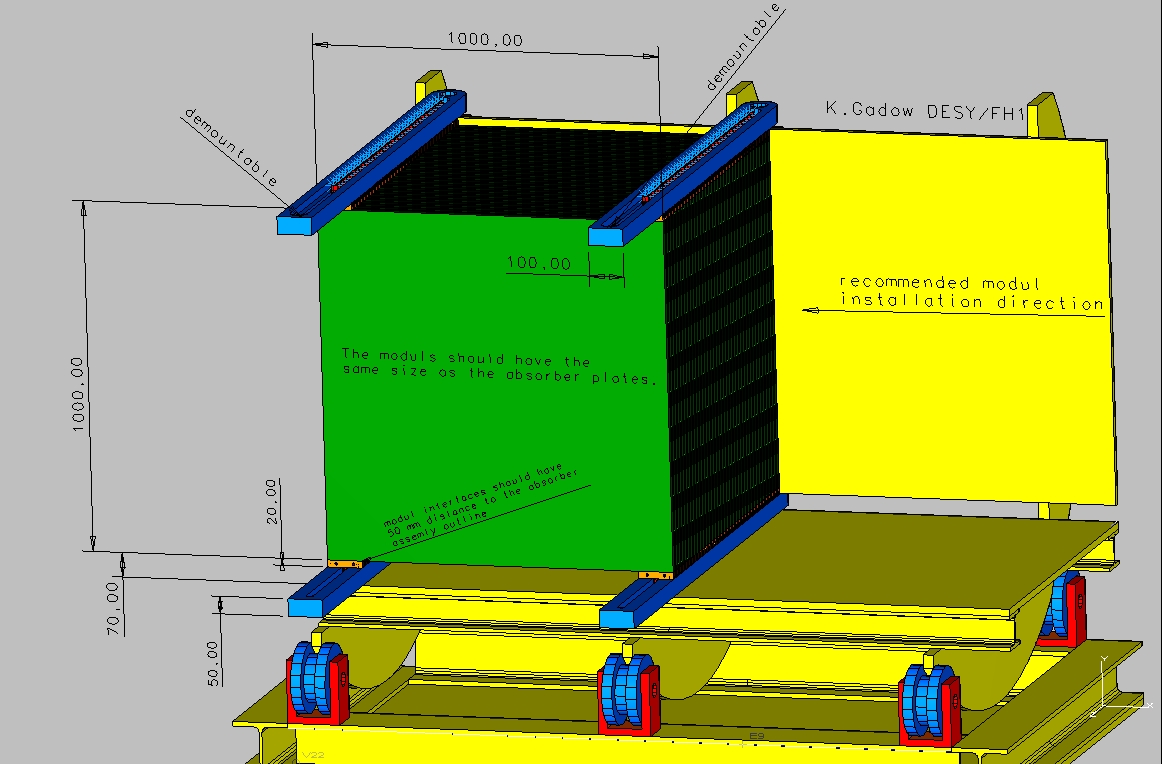

  • Mechanical: ECAL scanning table details (doc), readout (doc), data structure (pdf), HCAL scanning table (jpg, 1, 2)

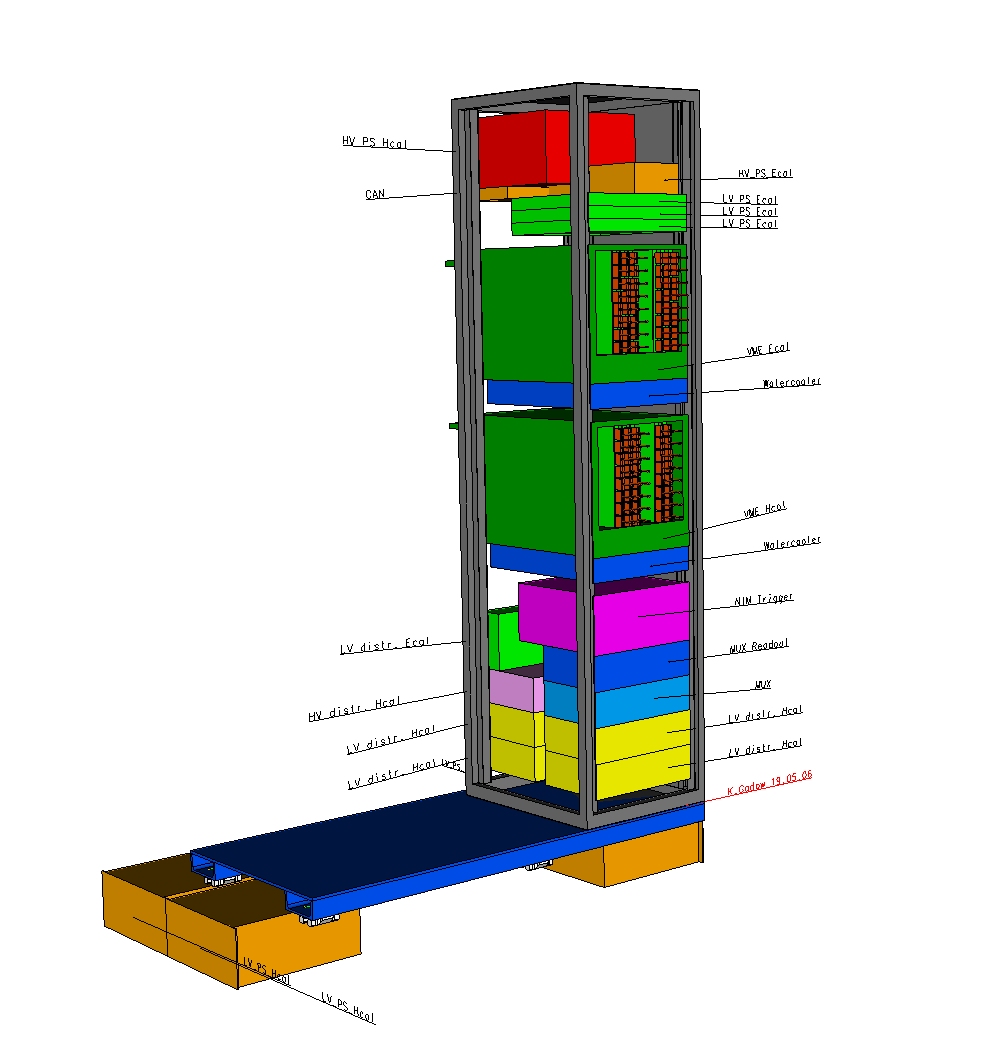

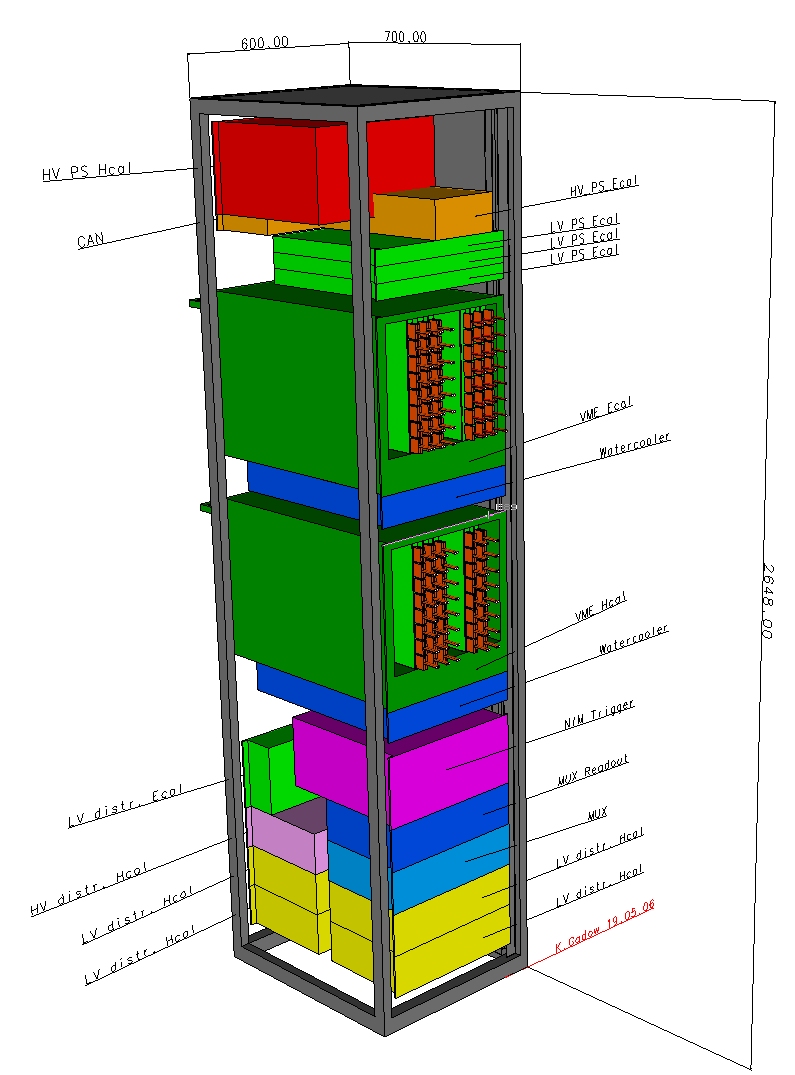

  • CERN rack layouts (jpg, 1, 2), cable runs (pdf)
• System
  • Overview diagram (ps, pdf)
  • Internal interface: VME crate customisation (?)
  • PCI/VME interface: SBS VMEbus-PCI model 620, user manual (pdf)
  • VME crate: Wiener Series 6000 CERN/LHC VME 64X crate specification (website, pdf)
  • TDCs: LeCroy 1176 preliminary manual, CAEN V767B manual
  • NIM-to-LVDS module: NIM lemo, LVDS 68-way SCSI, website, schematics, channel I/O map
• Readout board
  • Overview (ps, pdf), data paths (pdf)

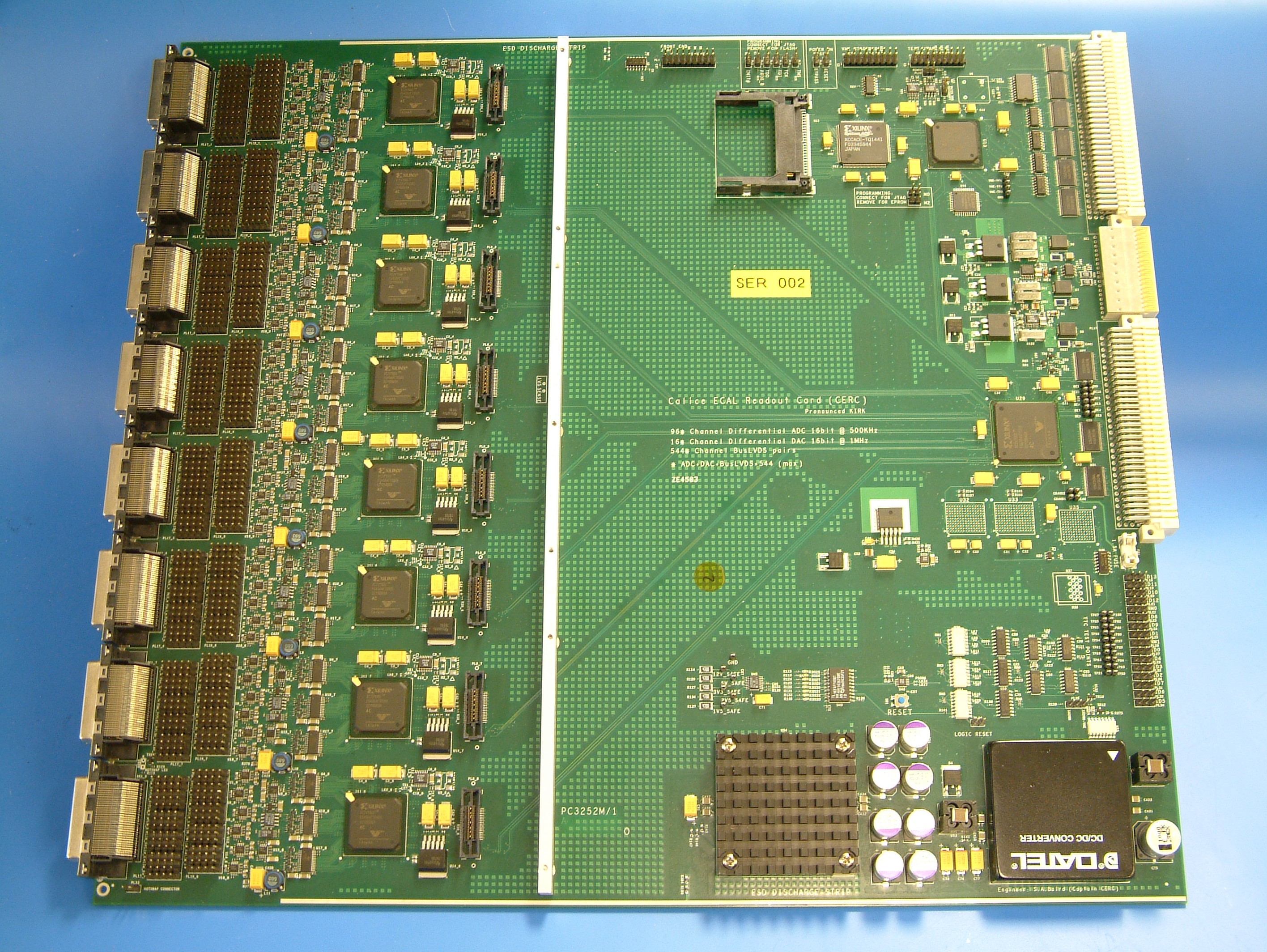

  • Prototype photo (tif, jpg)
  • External interface: VFE-PCB (see above), front panel layout (ppt, pdf), cable connectors: html
  • External interface: VME (pdf)
  • Prototype technical information web page, schematics (pdf)
  • User guide linked from Adam's website
  • Firmware: VME (dir), BE (dir), FE (dir) CompactFlash (dir)
  • Internal interface: master-to-slave FPGA configuration path timing (pdf)
  • Internal interface: slave-to-master FPGA data path (ps, pdf)
  • Master FPGA: FPGA block diagram (pdf), pin estimate (txt)
  • Slave FPGA: FPGA block diagram, pin estimate and ADC control timing (ps, pdf), missing Fig 1 (doc, ps)
  • Proposed FPGA's (Virtex-II), System ACE (pdf)
  • Proposed ADC: TI ADC's overview, ADS8361
  • Proposed DAC: AD5541
  • Slow controls monitoring: voltages ADM1025A (pdf), temperature LM82 (pdf)
  • EPROM board id: X24165 (pdf)
  • Cost estimate (xls)
  • Problem reports website
• Front End FPGA
  • Block diagram: front end (ps, pdf)
• Back End FPGA
  • Block diagram: back end (ps, pdf)
• Trigger
  • Block diagram: trigger section of back end (ps, pdf)
  • Block diagram (ppt, pdf), functional diagram (ppt, pdf), description (doc, pdf)
  • External interface: inputs (see above), front panel layout (ppt, pdf)
  • External interface: VME (doc, pdf)
• Test board
  • Block diagram (ps), functional diagram (ppt, pdf)
  • External interface: VFE-PCB (see above), front panel layout (ppt, pdf)
  • External interface: VME (see above)
• RS232 System

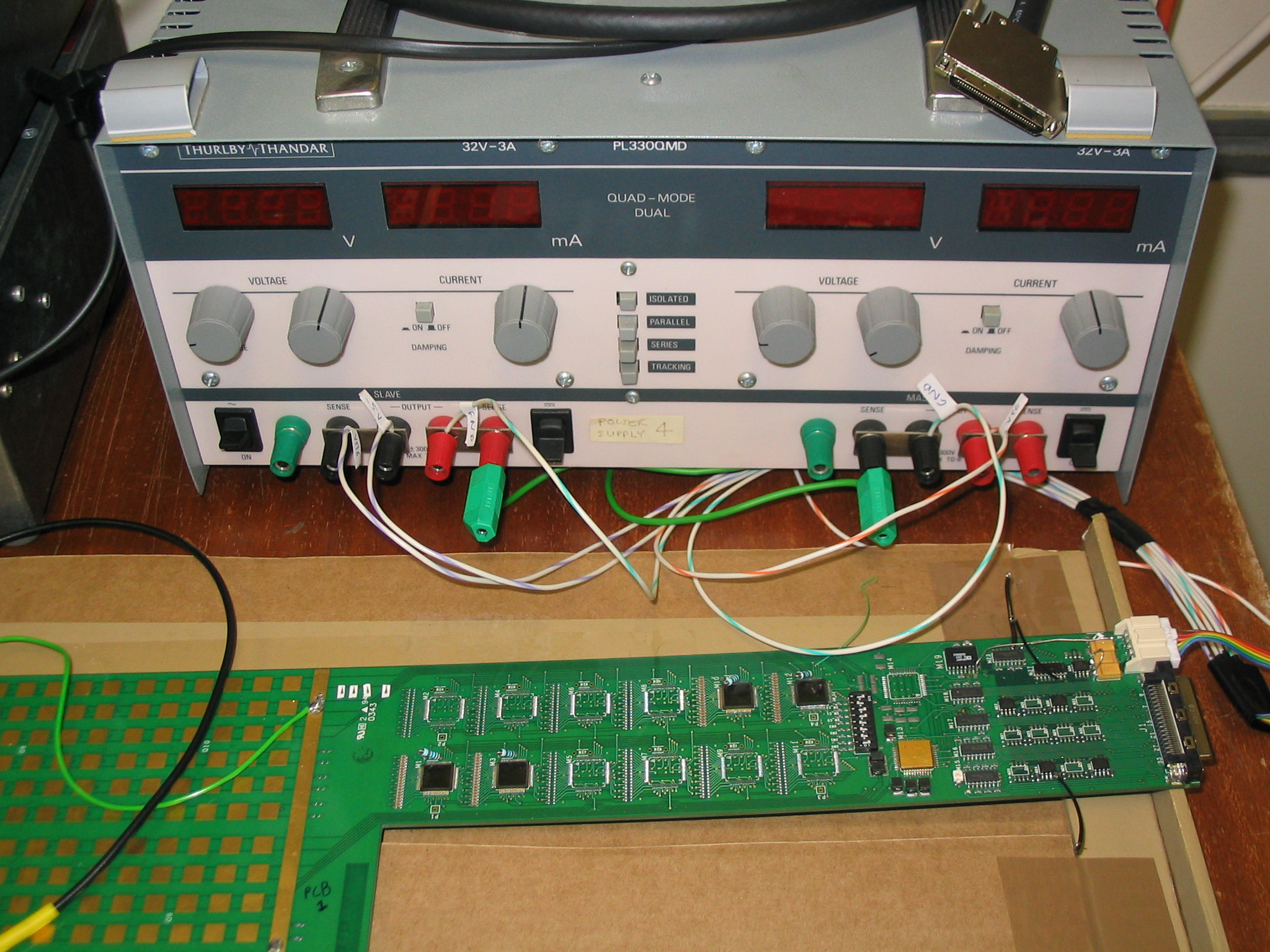

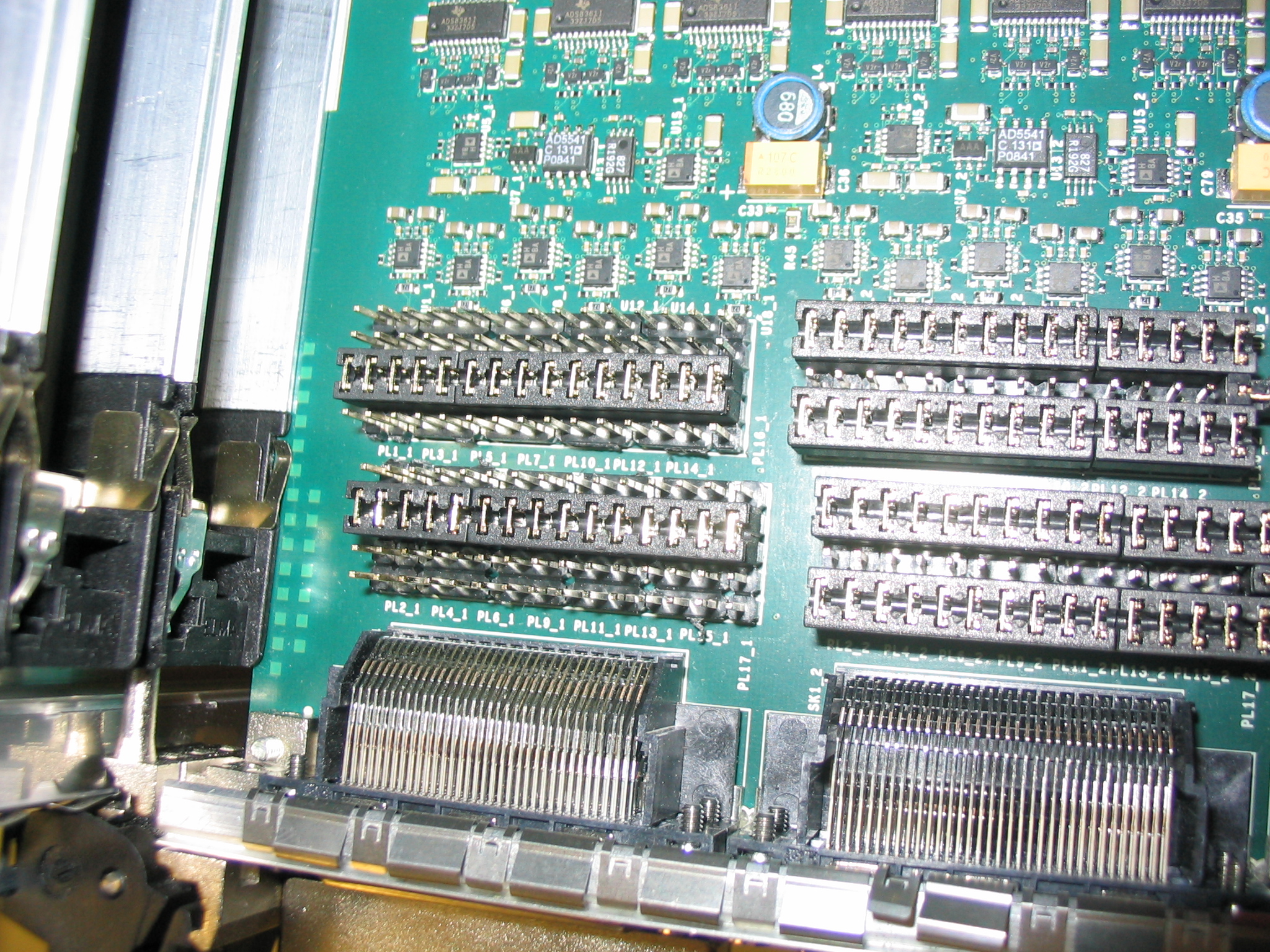

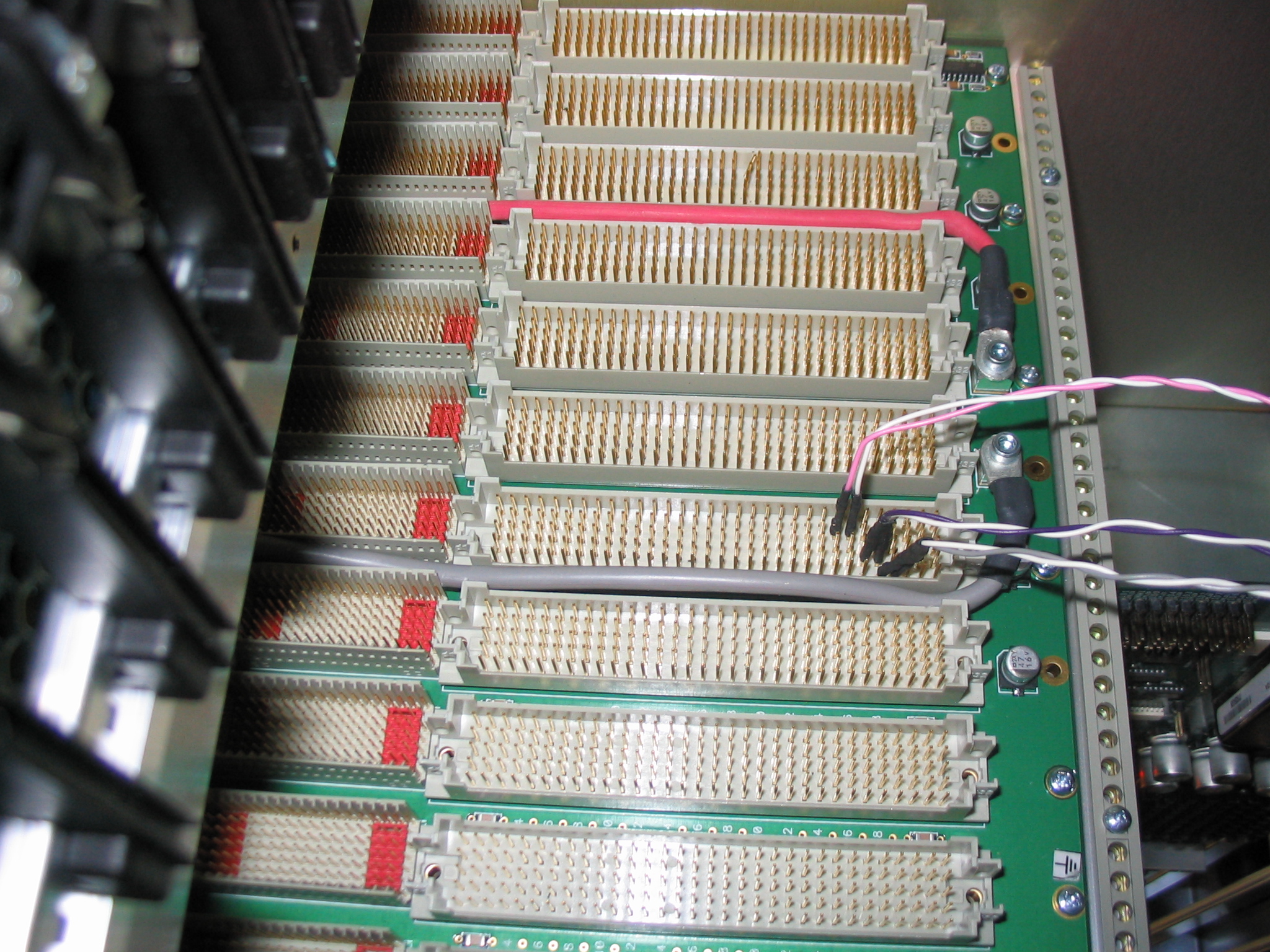

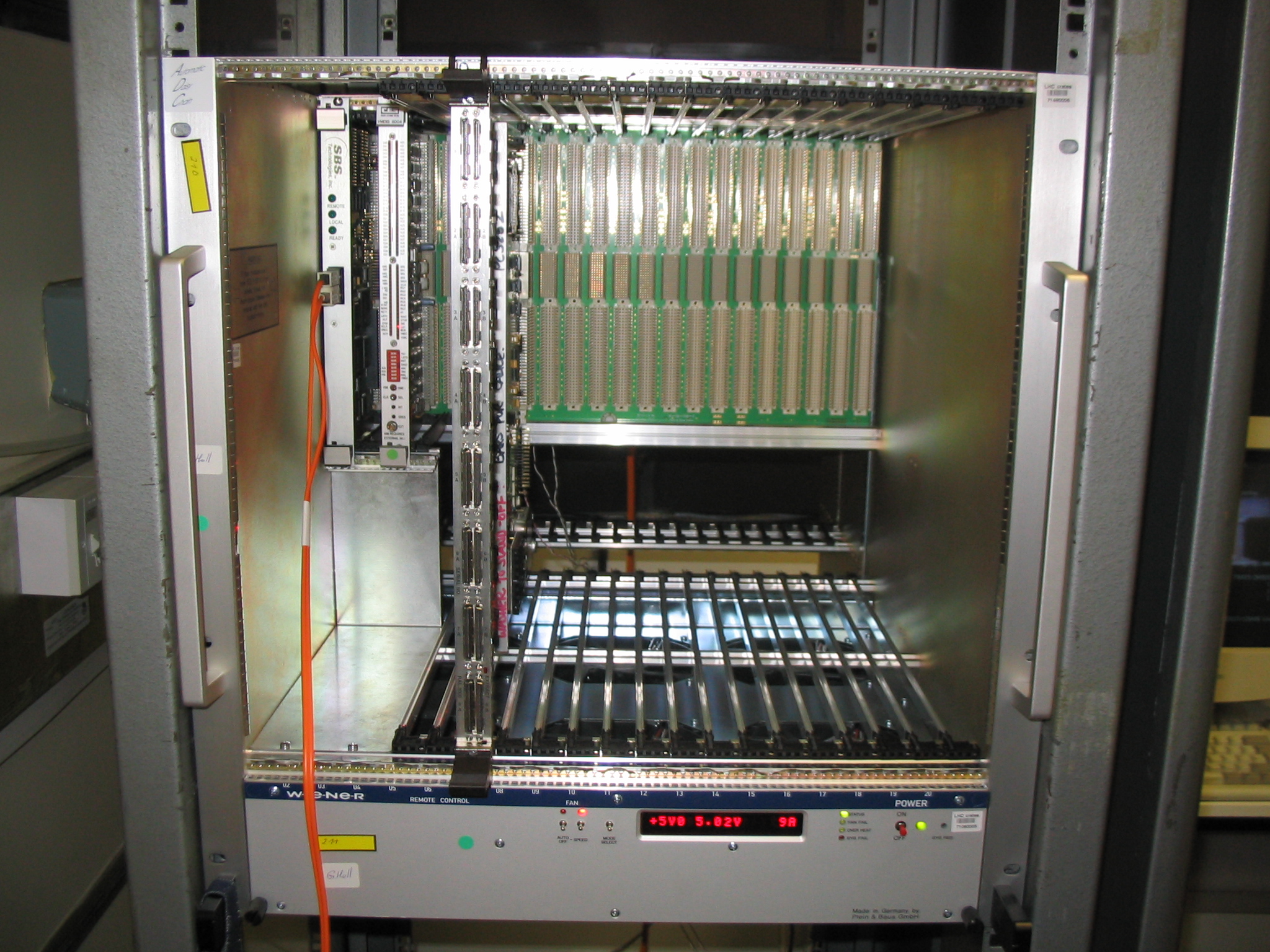

  • Photos: front of crate (jpg), back of crate (jpg), CERC link array (jpg), development board (jpg), VFE PCB (jpg)
• Software
  • CERN Hardware Access Library (HAL) web page
  • CMS FED HAL memory map file (dat)
• Related links
  • Electronics meetings web page
  • Electronics status reports web page
  • CMS Tracker FED web page
  • Matt Warren's CALICE web page
  • Osman Zorba's CALICE web page
• File access
  • Raw directory listing
  • Electronics page archive
